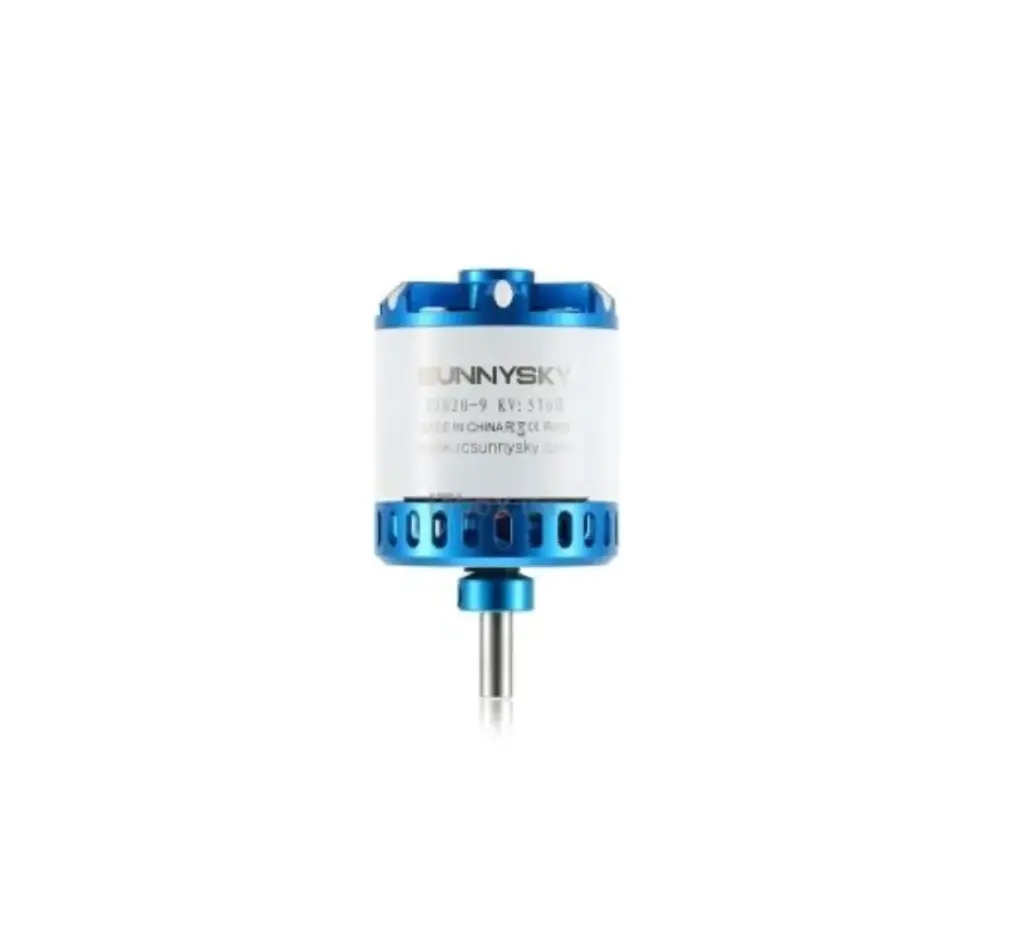

Motor SunnySky V3 X2820 570KV
The SunnySky V3 X2820 570KV motor is engineered for optimal performance in high-thrust applications. With a 570KV rating, it delivers exceptional power and efficiency. Its robust design features a smooth 5mm shaft and a hollowed structure for excellent heat dissipation while keeping the weight low.
> Maximum Thrust: 4000 g
> Voltage: 22.2 V
> Rated Current: 2.6 A
> Peak Current: 60 A
> No-load Current: 0.83 A
> Maximum Continuous Current: 53 A
> Maximum Continuous Power: 1325 W
> Shaft: Smooth
> Shaft Diameter: 5 mm
> Resistance: 53 mΩ
> Configuration: 12N14P
> Wire Length: 100 mm
> Motor Mount: 19x25 mm; 44x44 mm
> Recommended Propellers: 12x6.5”, 12x8.0”, 13x7.0”
> Dimensions: 35x35x61 mm
> Weight: 146 g
