MATEK F405-WMN Flight Controller

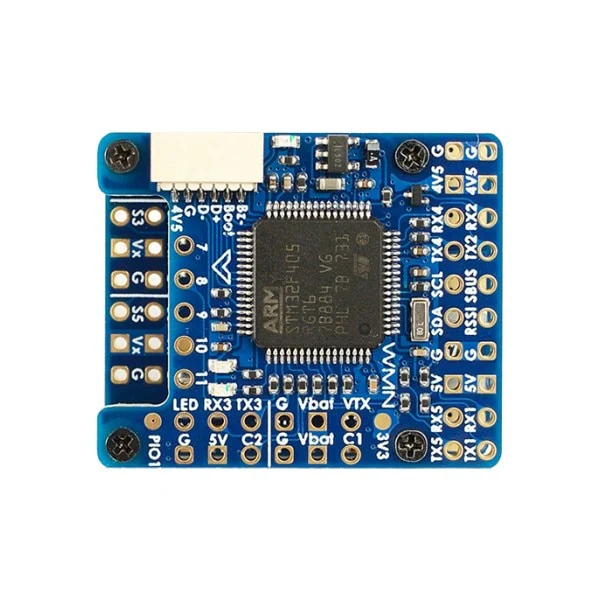

Matek's F405-WMN (Wing Mini) board is a great flight controller for those looking to save space and weight in their designs. It offers pretty much all the features of a full-size board on a board that measures only 31x26x16mm.

Features
> Full-size board
> Light weight

Technical Data
> MCU: STM32F405RGT6, 168MHz , 1MB Flash
>  IMU: ICM42688-P
> Baro: SPL06-001
> OSD: AT7456E
> Blackbox: 16M Flash
> 5x UARTs, 1x Softserial_Tx option (INAV)
> 12x PWM outputs
> 1x I2C
> 3x ADC (VBAT, current, RSSI)
> 1x spare PINIO
> USB/Beep Extender with Type-C(USB2.0)
> Built-in inverter to UART2-RX for SBUS input
> Switchable dual camera inputs
